Aluminum guide roll is critical components in industrial machinery, designed to ensure smooth and precise material transport across production lines.
Combining advanced metallurgy with specialized surface treatments, these rollers deliver exceptional performance in demanding manufacturing environments.
Key Features & Advantages
1. Lightweight Construction
- Material: High-strength aluminum alloys.
- Benefits:
- Reduces rotational inertia and energy consumption.
- Maintains structural rigidity while easing installation.
- Minimizes strain on supporting machinery.
2. Superior Corrosion Resistance
- Surface Treatments:
- Anodized surfaces (e.g., HV300 Silver) for oxidation protection.
- Optional Teflon® coatings for non-stick properties.
- Advantages:
- Resists chemicals and environmental wear.
- Ideal for adhesive-intensive processes.
3. Customizable Surface Textures
- Options:
- Cross Line: Enhanced grip for slippery substrates.
- Center Line: Precision tracking for sensitive materials.
- Grooved Line: Controlled web alignment.
- Knurled Line: Maximum traction for high-tension systems.

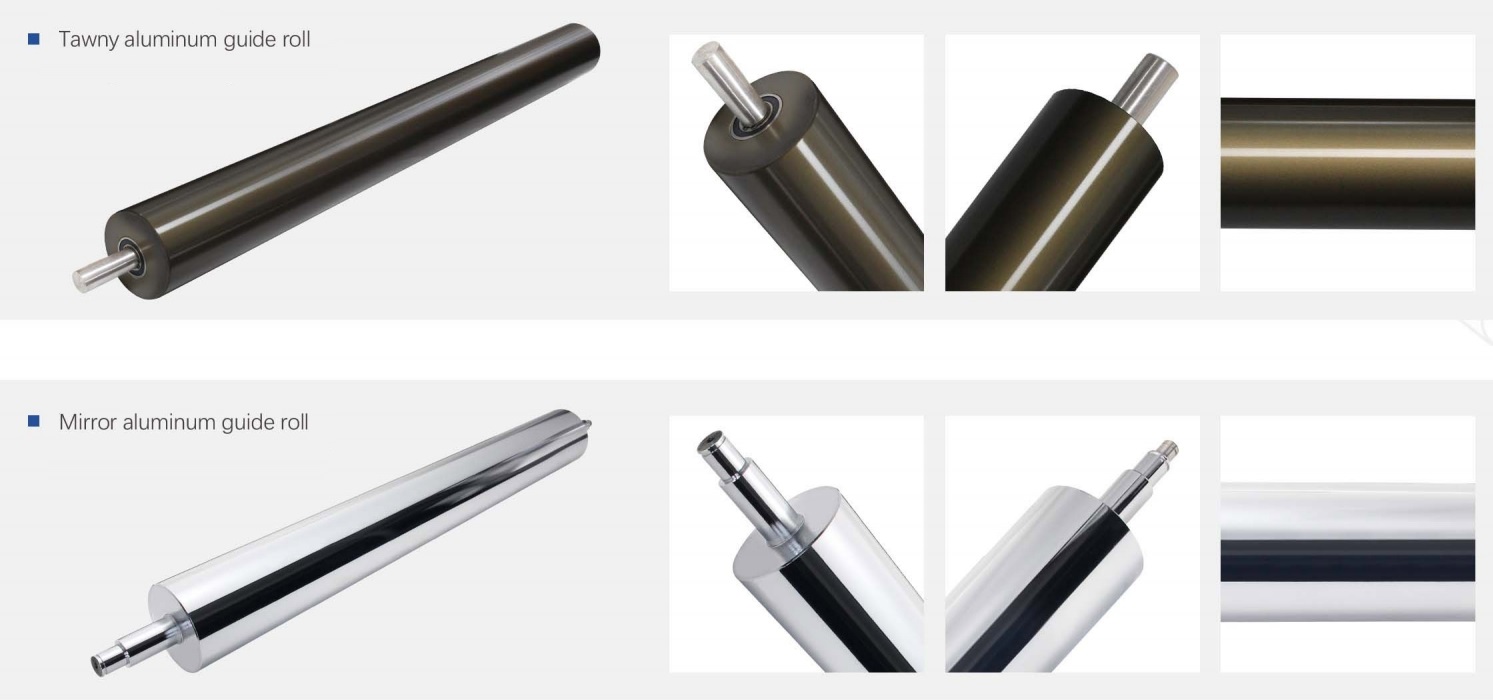

- Mirror Finish: Ultra-smooth contact for delicate surfaces.
- Satin Finish: Balanced friction for versatile use.
4. Optimized Friction & Wear Resistance
- Engineering:
- Precision-machined surfaces minimize material abrasion.
- Advanced treatments extend service life 3x longer than steel rollers.
- Performance: Ensures consistent traction in high-abrasion scenarios.
Technical Specifications
| Parameter | Details |
| Load Capacity | Supports line speeds >1,000 m/min |
| Temperature Tolerance | -20°C to +150°C (Teflon® variants to +260°C) |
| Surface Hardness | Anodized coatings: 500–700 HV |
| Runout Tolerance | ≤0.05 mm for vibration-free operation |

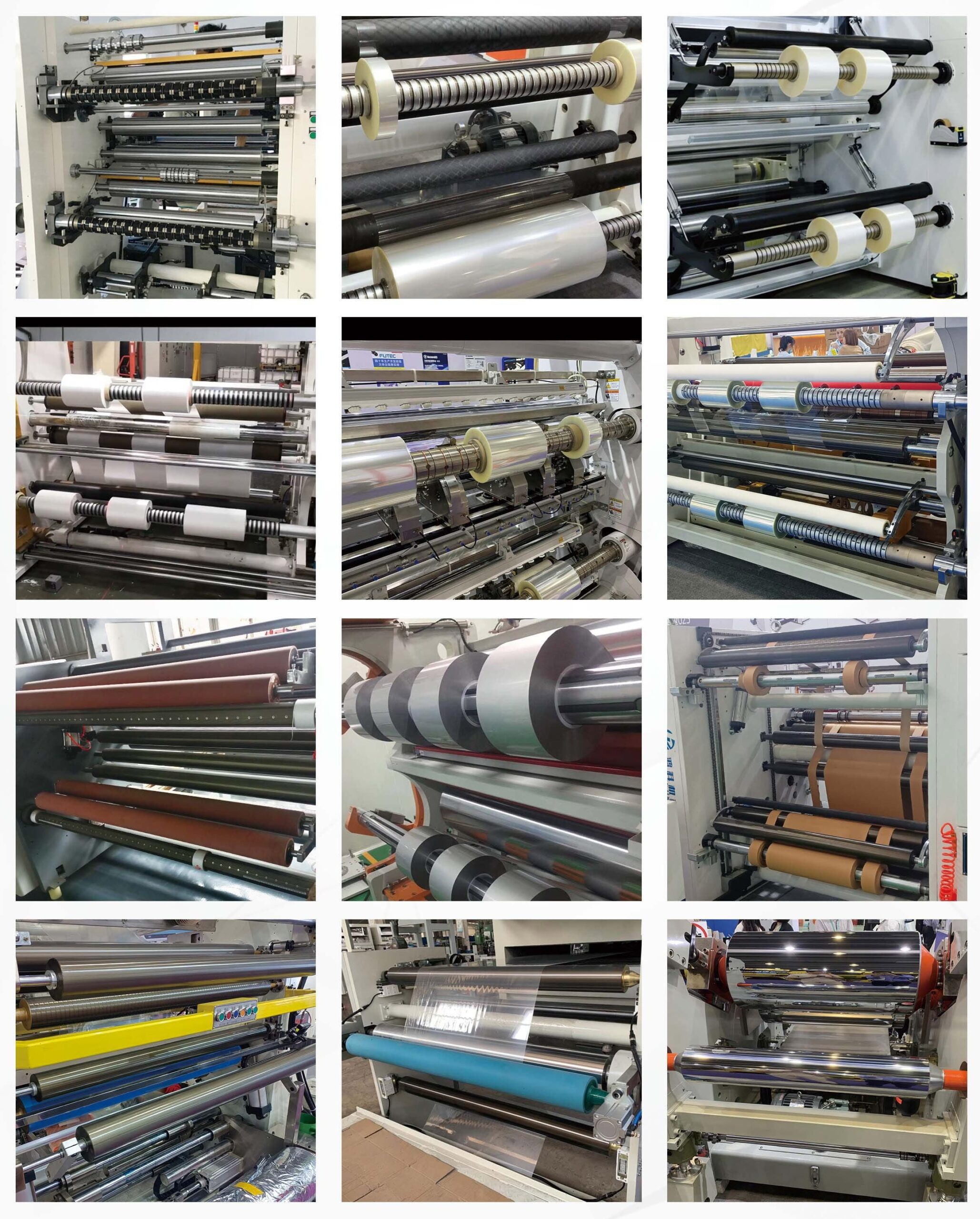

Industry Applications
- Printing & flexible packaging systems
- Plastic film processing lines
- Battery electrode coating machinery
- Paper converting and laminating equipment
- Textile manufacturing and finishing
Why Choose Aluminum Guide Roll?
- Energy Efficiency: 40% lighter than steel alternatives.
- Hygienic Design: Non-porous surfaces resist bacterial growth.
- Low Maintenance: Eliminates rust-induced downtime.

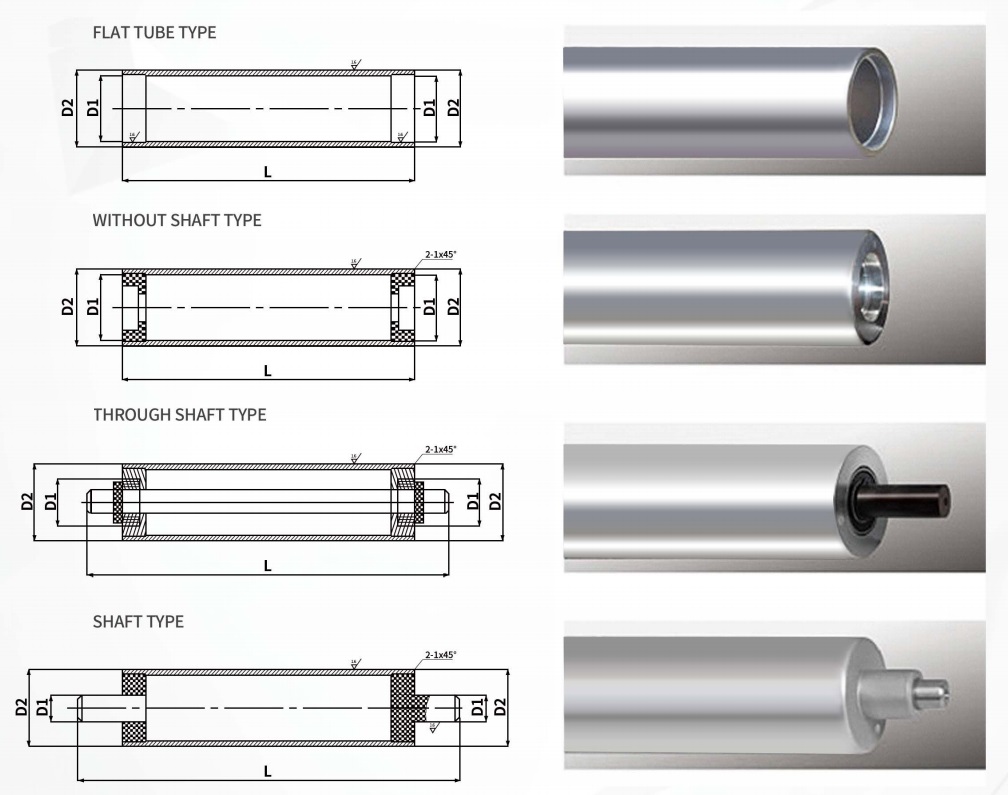

- Customization: Available in shaft-mounted, shaftless, and thru-shaft configurations.
