Multi-Material Coatings for Industrial Rollers
Advanced multi-material coatings revolutionize industrial roller in papermaking, offering tailored solutions for critical components like center press rollers, Yankee dryers, rewinder base rollers, and dryer cylinders.
Engineered with high-performance materials such as oxide ceramics, tungsten carbide, and Teflon composites, these coatings deliver exceptional hardness (up to 1400 HV0.3), corrosion resistance (pH 3-10), and anti-stick properties.
By optimizing surface roughness, wear resistance, and blade compatibility, they significantly reduce downtime, extend equipment lifespan, and enhance paper quality-ensuring reliable, cost-effective performance across diverse papermaking processes.
Ceramic Coating Roll
◎ Coating Thickness: ≥0.75mm
◎ Surface Roughness: ≤1.2μm (determined by paper type)
◎ Coating Hardness: HV0.31300 ± 100
◎ Coating Material: high-purity oxide ceramic
◎ Typical Application: Center press roller
√ Hardness (up to 1400HV0.3) for enhanced wear resistance and reduced maintenance frequency.
√ Specially designed sealing layer for hydrophobic/hydrophilic interaction, improving wettability and release properties.
√ Excellent chemical corrosion resistance (pH 3-10).
√ Extends blade lifespan, reducing blade usage by over 50%.
Yankee Dryer Coating
◎ Surface Roughness: 0.4-0.6μm
◎ Coating Hardness: HV0.3 900±100
◎ Coating Material: Carbide
◎ Typical Application: Yankee Dryer
√ Increased surface hardness and wear resistance, extending grinding cycles.
√ Maintains surface gloss and smoothness for improved paper quality.
√ Compatible with ceramic blades, prolonging blade lifespan.
Tungsten Carbide Coating Roll
◎ Coating Thickness: 0.10-0.12mm
◎ Surface Roughness: Ra3-11μm (determined by paper type)
◎ Coating Hardness: HV0.31200 ± 100
◎ Coating Material: Carbide/tungsten carbide
◎ Typical Application: Rewinder base roller, arc roller, combination roller, etc.
√ High surface roughness prevents paper slippage and jumping.
√ Persistent friction retention.
√ Excellent wear resistance for stable operation.
Teflon Coating Roll
◎ Coating Thickness: 0.1-0.12mm
◎ Surface Roughness: ≤0.8μm
◎ Coating Hardness: HV0.3 1100±100
◎ Coating Material: Tungsten carbide + Teflon
◎ Typical Application: Dryer cylinder, drying section guide roller
√ Anti-stick and high-release performance, enabling persistent cylinder cleanliness with blades.
√ Convenient on-site application.
√ Long-lasting wear resistance (over 10 years).

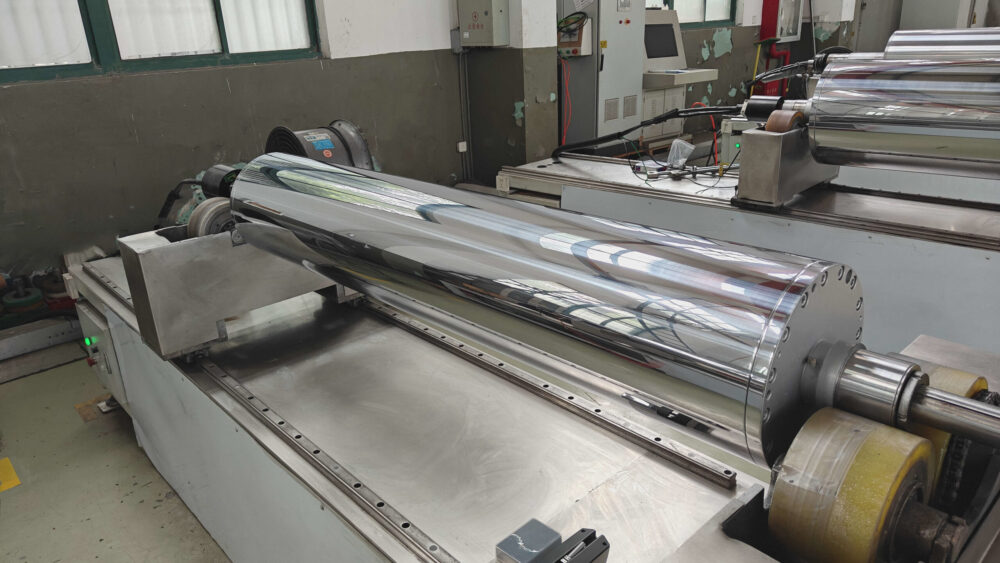

Chrome Mirror Coating Roll
◎ Coating Thickness: ≥0.15mm
◎ Surface Roughness: ≤0.03μm
◎ Coating Hardness: HV0.3 1200±100
◎ Coating Material: Carbide/Tungsten carbide
◎ Typical Application: Hot roller, swimming roller, chilled cast iron roller
√ Maintains surface gloss and smoothness for improved paper quality.
√ Extends grinding cycles.
√ Reduces vibration sensitivity.
